Floor plans › Sprinter upfits › CUS-107
PLAN CUS-107
PTV Upfit
PLAN VIEW · DIMENSIONS REMOVED FROM THE PUBLIC SHEETHLE ENGINEERING · WAKARUSA, IN
Freightliner S2C
Platform · medium-duty
Custom upfit
Vehicle type
≈ 40 ft
Length · approx., typical for this chassis
CUS-107
Plan ID · quote it when you call
Dimensions are removed from the public drawing. Every unit is built to the customer's program; this plan is a starting point.
Budget range · typical for this vehicle type
Priced per unit
Your number comes with the proposal.
Vehicle, body and HLE-supplied equipment. Customer-furnished equipment itemized separately, no markup.
| Line | On the budget |
|---|---|
| Platform and length | Freightliner S2C · ≈ 40 ft (approx.) |
| Major equipment | Itemized, HLE-supplied or customer-furnished |
| Access and power | Itemized |
| Budget | One-pager with line items, for a grant budget |
Delivered units of this type
Photos of sprinter and custom van upfits HLE has built are on the vehicle page.
See delivered units →Views on this sheet

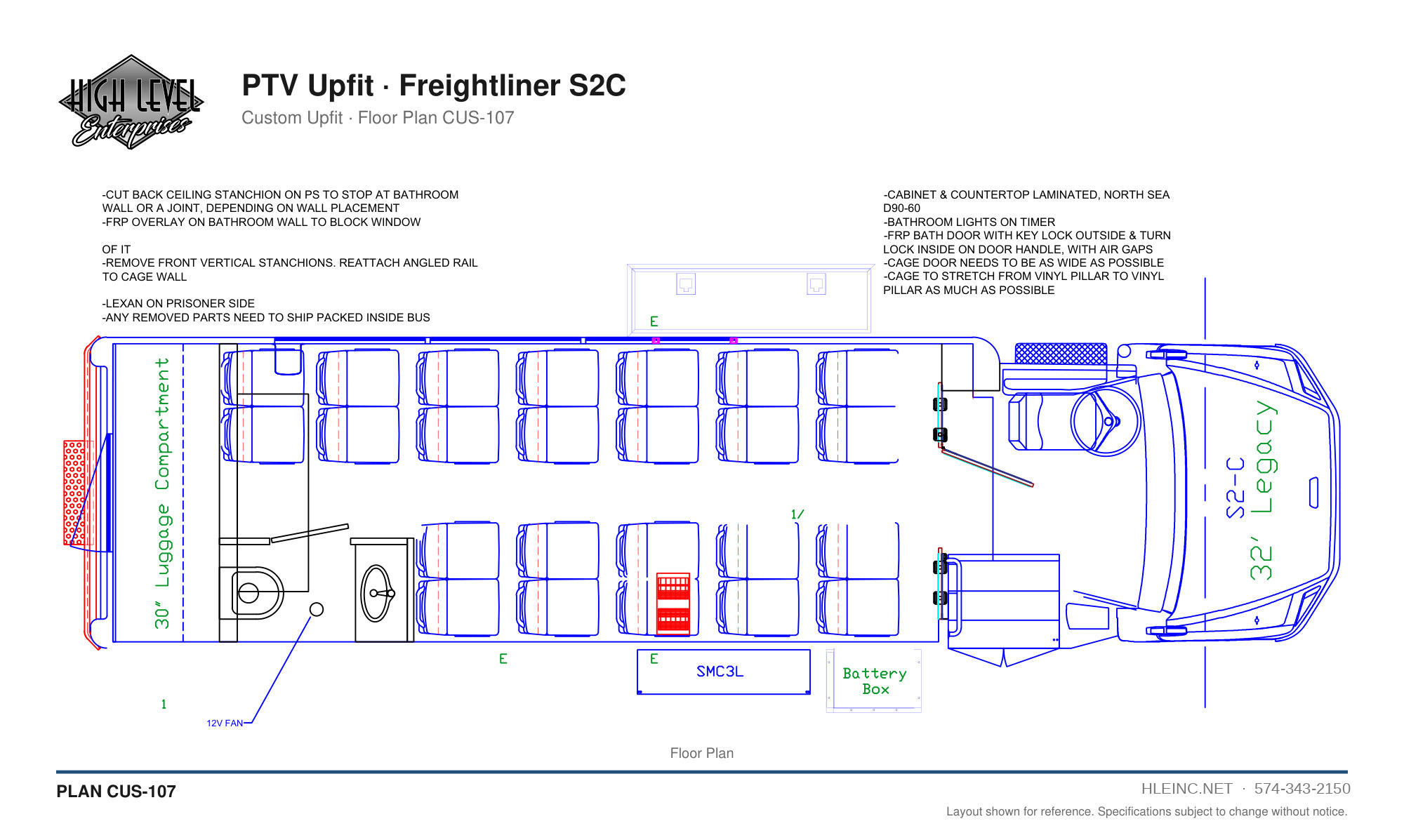

- Floor Plan
One JPEG, every view stacked and captioned.
