Floor plans › Mobile medical › MED-109
PLAN MED-109 · DRAWN NOV 2024
Mobile Medical Unit
PLAN VIEW · DIMENSIONS REMOVED FROM THE PUBLIC SHEETHLE ENGINEERING · WAKARUSA, IN
Ford E-350
Platform · cutaway
Mobile medical
Vehicle type
≈ 23 ft
Length · approx., from the HLE body code on the drawing
MED-109
Plan ID · quote it when you call
Dimensions are removed from the public drawing. Every unit is built to the customer's program; this plan is a starting point.
Budget range · typical for this vehicle type
$130,000 – $400,000
Typical range for recent HLE units, from the lowest sold to the highest quoted. Larger or more heavily equipped units run above it; your number comes with the proposal.
Vehicle, body and HLE-supplied equipment. Customer-furnished equipment itemized separately, no markup.
| Line | On the budget |
|---|---|
| Platform and length | Ford E-350 · ≈ 23 ft (approx.) |
| Major equipment | Itemized, HLE-supplied or customer-furnished |
| Access and power | Itemized |
| Budget | One-pager with line items, for a grant budget |
Delivered units of this type
Photos of mobile medical units HLE has built are on the vehicle page.
See delivered units →Views on this sheet

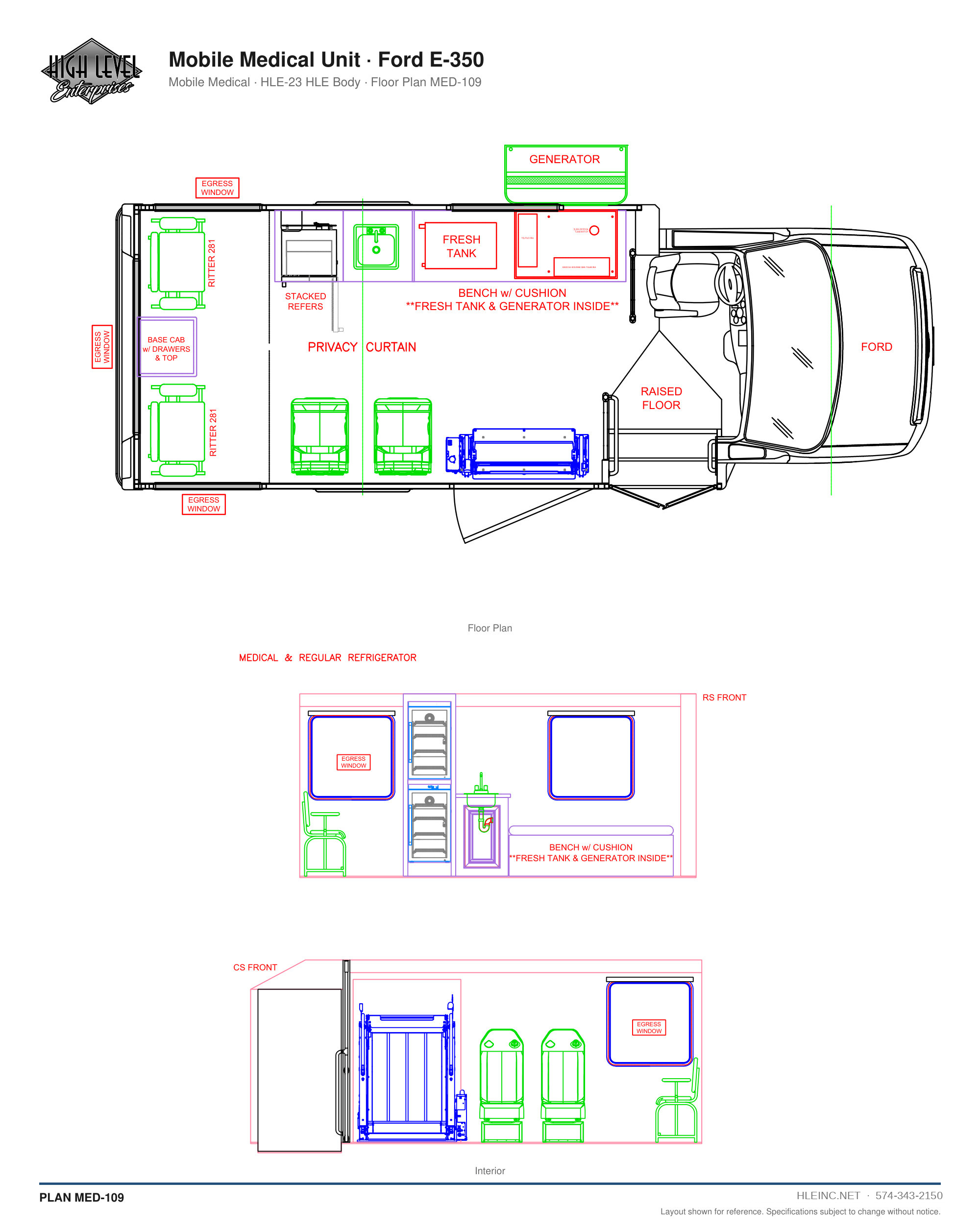

- Floor Plan
- Interior
One JPEG, every view stacked and captioned.
