Floor plans › Mobile medical › MED-113
PLAN MED-113 · DRAWN DEC 2024
36ft Mobile Health Unit
PLAN VIEW · DIMENSIONS REMOVED FROM THE PUBLIC SHEETHLE ENGINEERING · WAKARUSA, IN
Freightliner S2C
Platform · medium-duty
Mobile medical
Vehicle type
36 ft
Length · stated on the drawing
MED-113
Plan ID · quote it when you call
Dimensions are removed from the public drawing. Every unit is built to the customer's program; this plan is a starting point.
Budget range · typical for this vehicle type
$130,000 – $400,000
Typical range for recent HLE units, from the lowest sold to the highest quoted. Larger or more heavily equipped units run above it; your number comes with the proposal.
Vehicle, body and HLE-supplied equipment. Customer-furnished equipment itemized separately, no markup.
| Line | On the budget |
|---|---|
| Platform and length | Freightliner S2C · 36 ft |
| Major equipment | Itemized, HLE-supplied or customer-furnished |
| Access and power | Itemized |
| Budget | One-pager with line items, for a grant budget |
Delivered units of this type
Photos of mobile medical units HLE has built are on the vehicle page.

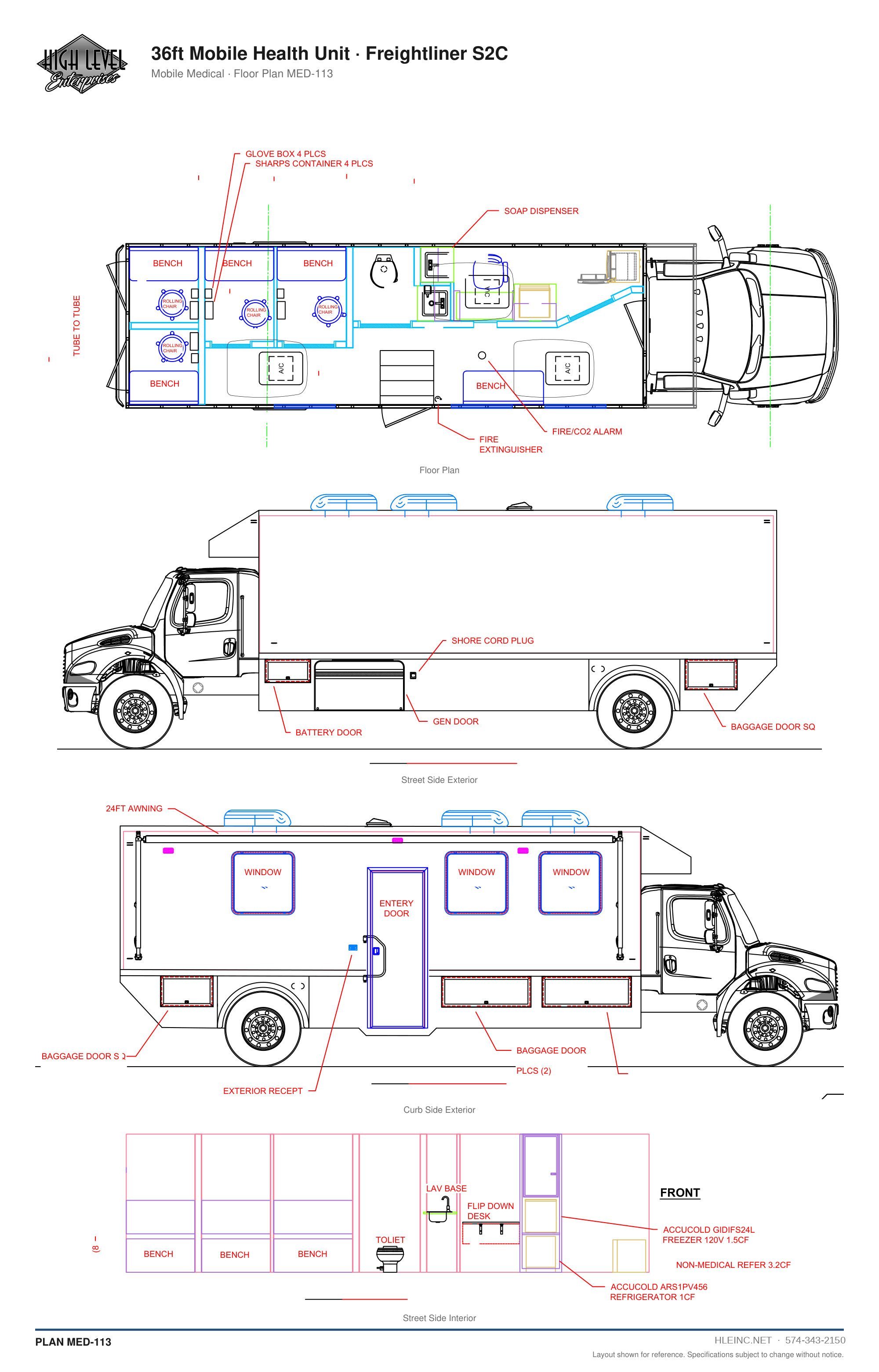

See delivered units →Views on this sheet
- Floor Plan
- Street Side Exterior
- Curb Side Exterior
- Street Side Interior
One JPEG, every view stacked and captioned.
Nearby plans
Same vehicle type, one step either way

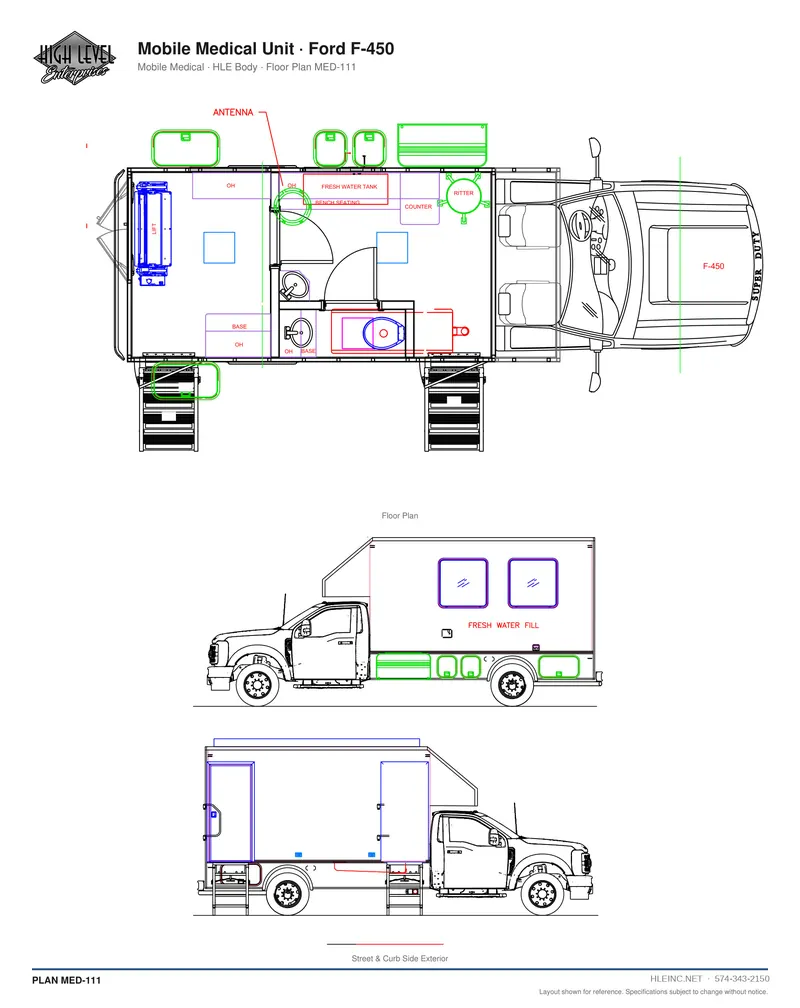

PLAN MED-111 · NOV 2024
Open the plan sheet →
Mobile Medical Unit
Ford F-450
Platform
Mobile medical
Vehicle type
≈ 22 ft
Length (approx.)

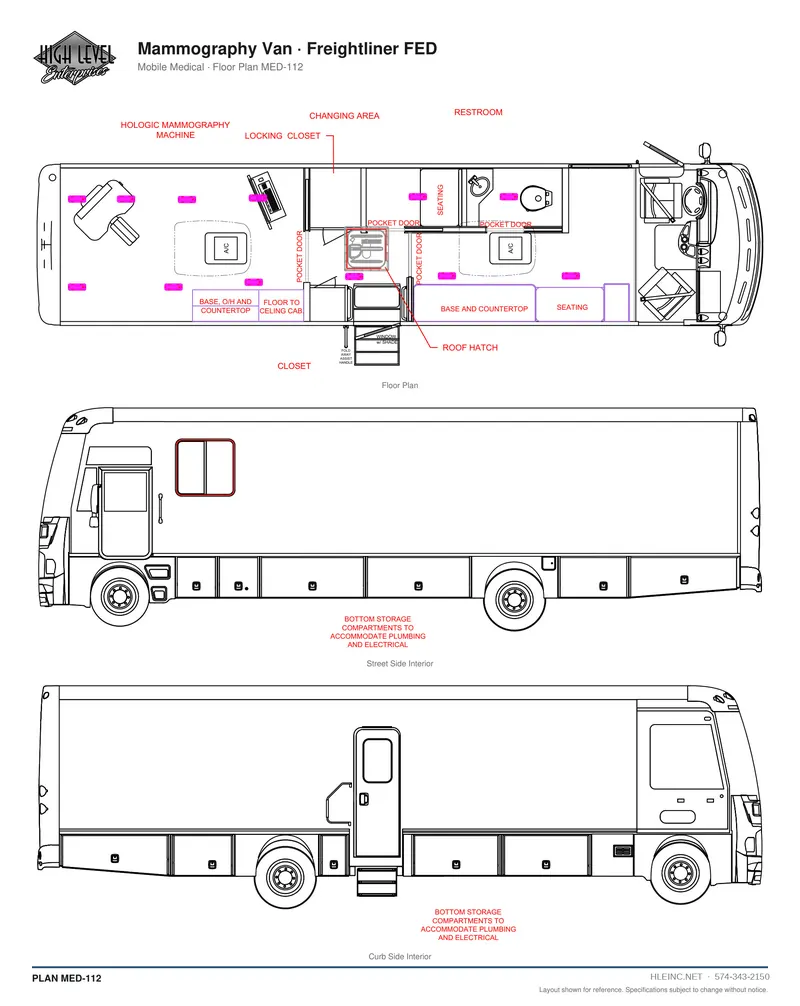

PLAN MED-112 · NOV 2024
Open the plan sheet →
Mammography Van
Freightliner FED
Platform
Mobile medical
Vehicle type
≈ 36 ft
Length (approx.)

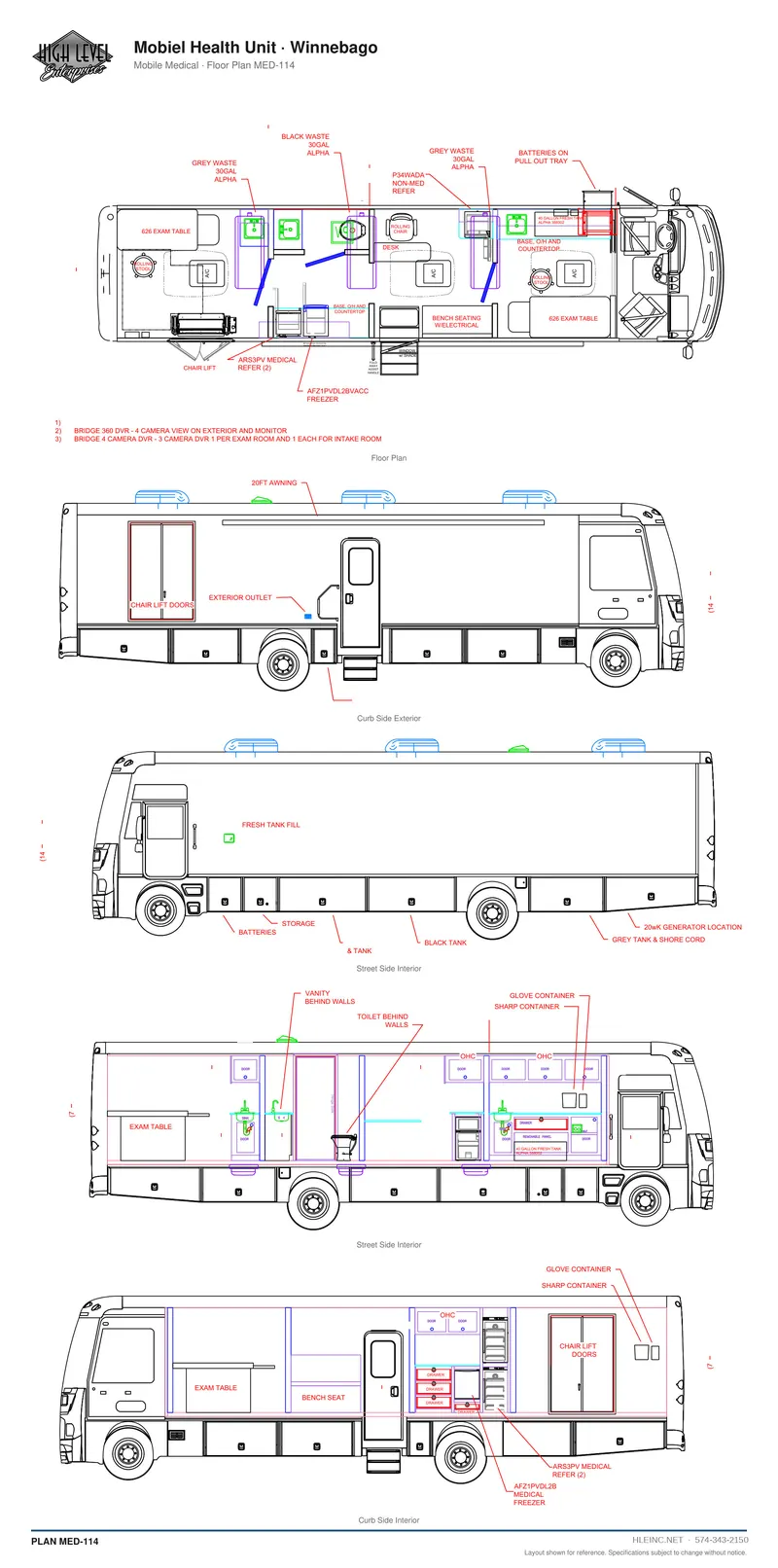

PLAN MED-114 · DEC 2024
Open the plan sheet →
Mobile Health Unit
Winnebago
Platform
Mobile medical
Vehicle type
≈ 30 ft
Length (approx.)

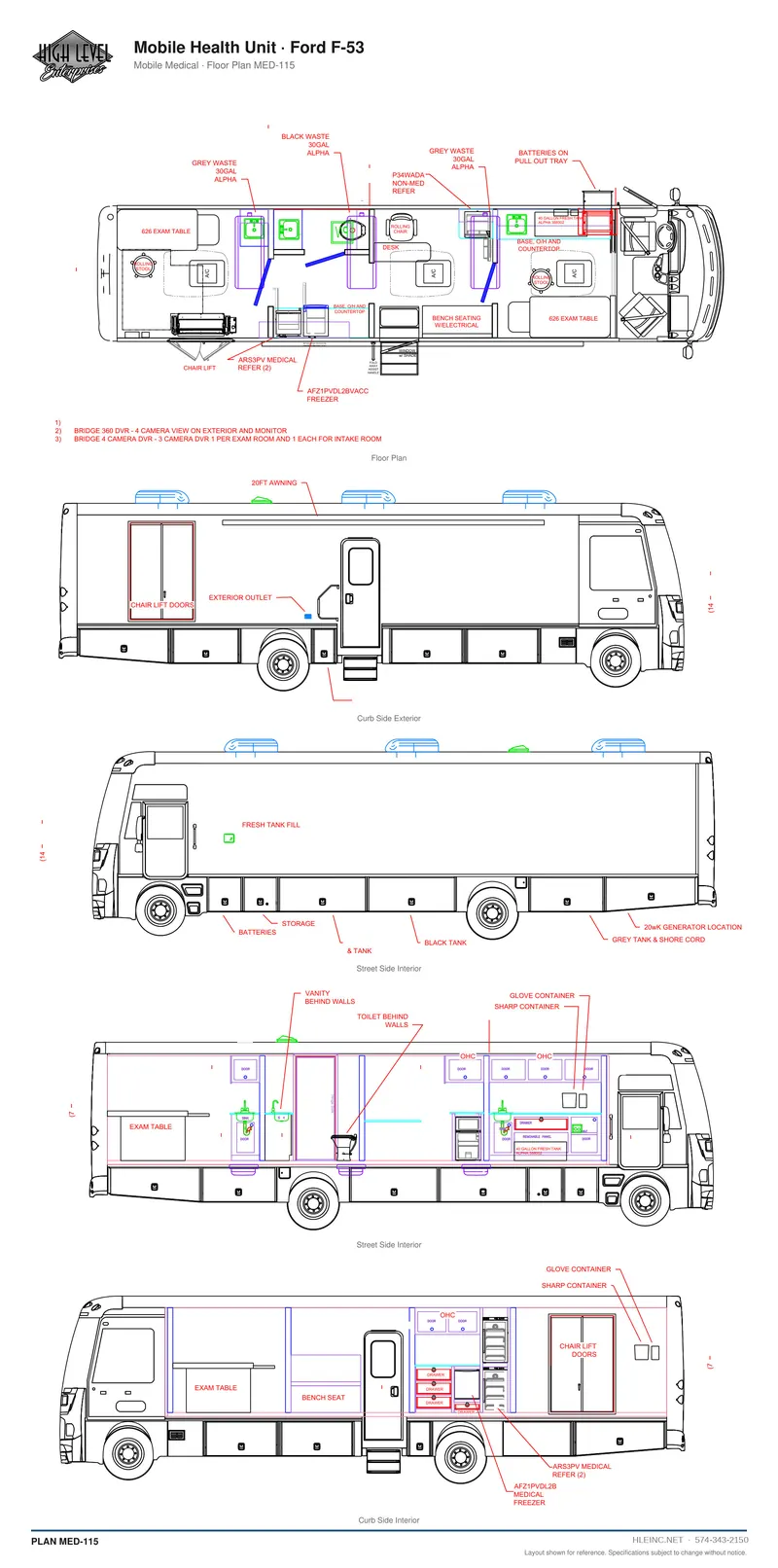

PLAN MED-115
