Floor plans › Mobile medical › MED-124
PLAN MED-124 · DRAWN MAY 2025
Morgue Trailer
PLAN VIEW · DIMENSIONS REMOVED FROM THE PUBLIC SHEETHLE ENGINEERING · WAKARUSA, IN
HLE 24' Trailer
Platform · trailer
Mobile medical
Vehicle type
24 ft
Length · stated on the drawing
MED-124
Plan ID · quote it when you call
Dimensions are removed from the public drawing. Every unit is built to the customer's program; this plan is a starting point.
Budget range · typical for this vehicle type
$130,000 – $400,000
Typical range for recent HLE units, from the lowest sold to the highest quoted. Larger or more heavily equipped units run above it; your number comes with the proposal.
Vehicle, body and HLE-supplied equipment. Customer-furnished equipment itemized separately, no markup.
| Line | On the budget |
|---|---|
| Platform and length | HLE 24' Trailer · 24 ft |
| Major equipment | Itemized, HLE-supplied or customer-furnished |
| Access and power | Itemized |
| Budget | One-pager with line items, for a grant budget |
Delivered units of this type
Photos of mobile medical units HLE has built are on the vehicle page.
See delivered units →Views on this sheet

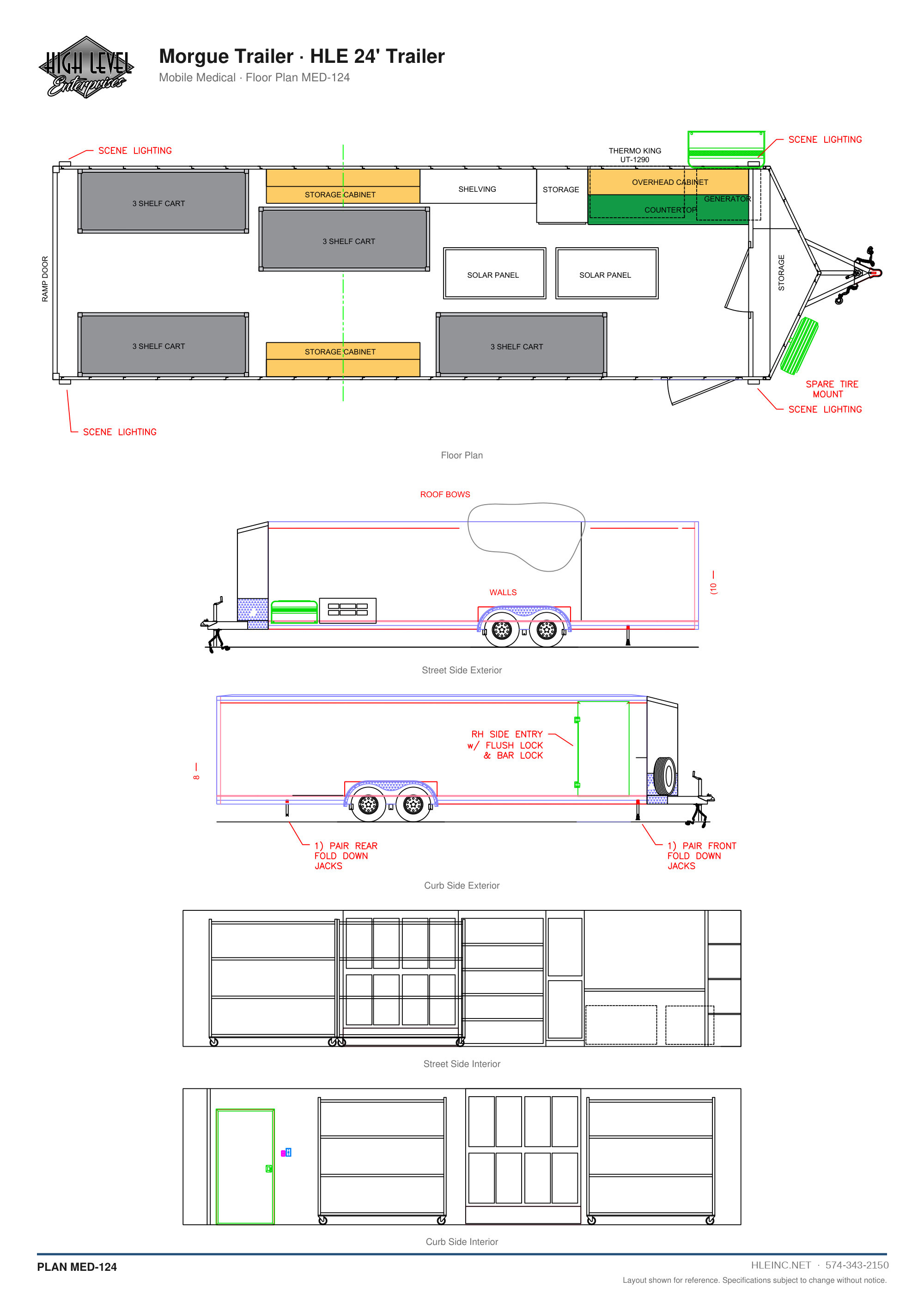

- Floor Plan
- Street Side Exterior
- Curb Side Exterior
- Street Side Interior
- Curb Side Interior
One JPEG, every view stacked and captioned.
Nearby plans
Same vehicle type, one step either way

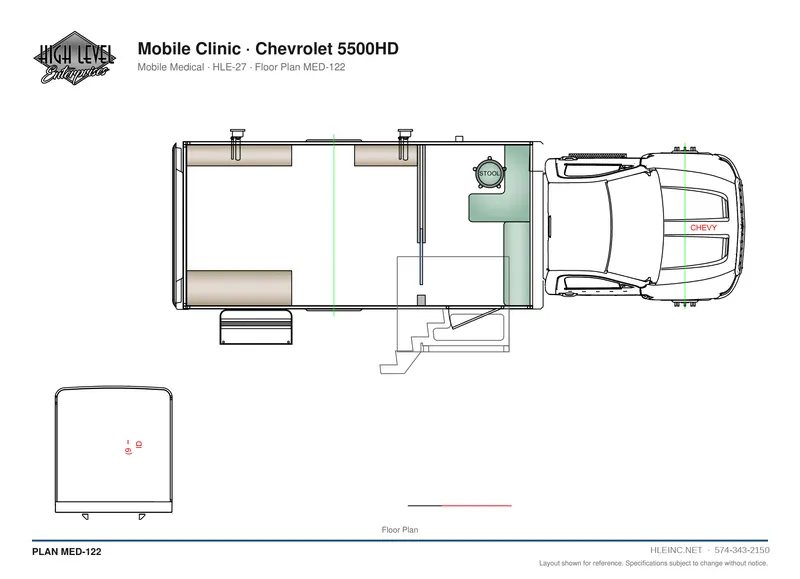

PLAN MED-122 · JUN 2025
Open the plan sheet →
Mobile Clinic
Chevrolet 5500HD
Platform
Mobile medical
Vehicle type
≈ 27 ft
Length (approx.)

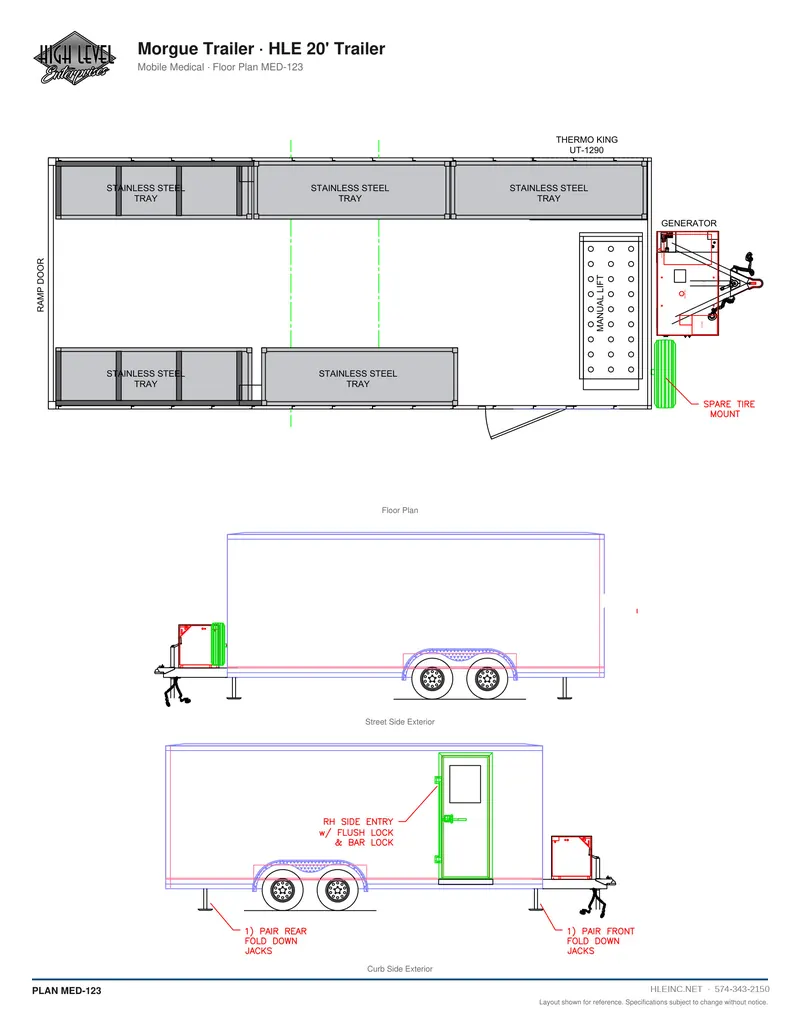

PLAN MED-123 · MAY 2025
Open the plan sheet →
Morgue Trailer
HLE 20' Trailer
Platform
Mobile medical
Vehicle type
20 ft
Length

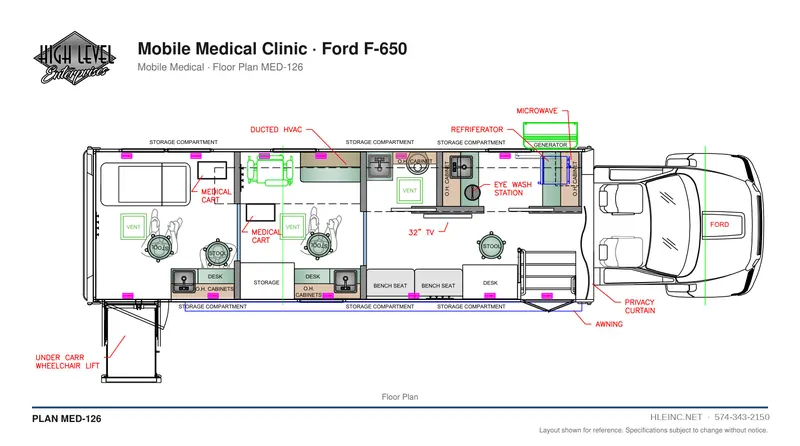

PLAN MED-126 · MAY 2025
Open the plan sheet →
Mobile Medical Clinic
Ford F-650
Platform
Mobile medical
Vehicle type
≈ 36 ft
Length (approx.)

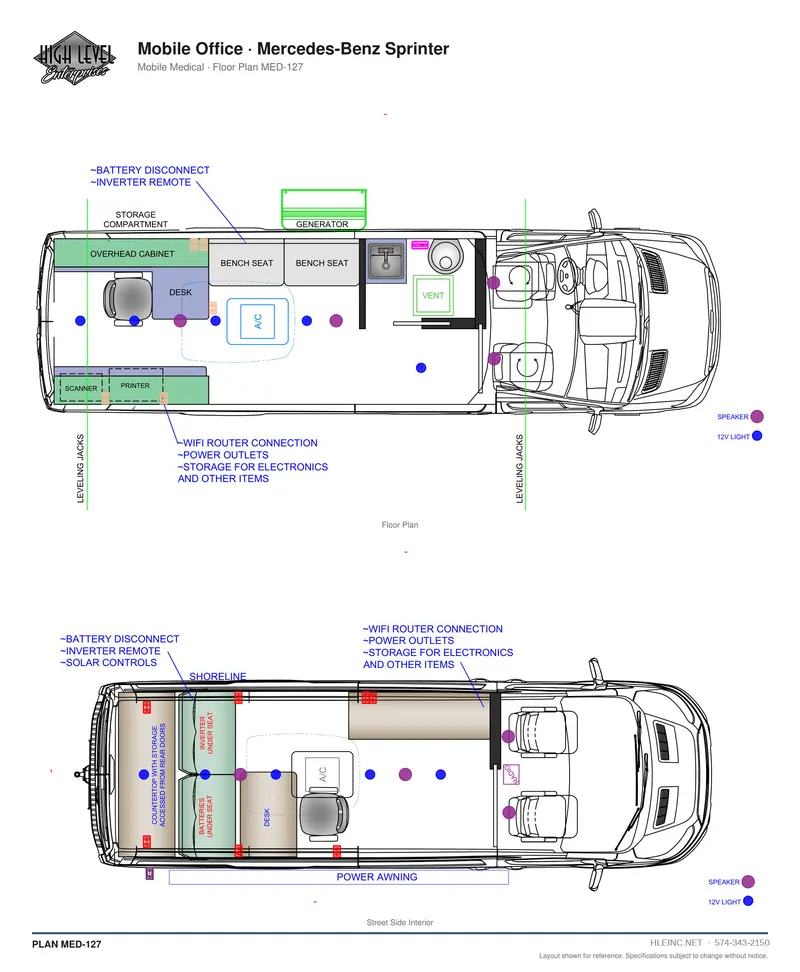

PLAN MED-127 · MAY 2025
