Floor plans › Mobile outreach › OUT-101
PLAN OUT-101 · DRAWN NOV 2024
Community Outreach
PLAN VIEW · DIMENSIONS REMOVED FROM THE PUBLIC SHEETHLE ENGINEERING · WAKARUSA, IN
8.5' x 20' Trailer
Platform · trailer
Mobile outreach
Vehicle type
20 ft
Length · stated on the drawing
OUT-101
Plan ID · quote it when you call
Dimensions are removed from the public drawing. Every unit is built to the customer's program; this plan is a starting point.
Budget range · typical for this vehicle type
$130,000 – $400,000
Typical range for recent HLE units, from the lowest sold to the highest quoted. Larger or more heavily equipped units run above it; your number comes with the proposal.
Vehicle, body and HLE-supplied equipment. Customer-furnished equipment itemized separately, no markup.
| Line | On the budget |
|---|---|
| Platform and length | 8.5' x 20' Trailer · 20 ft |
| Major equipment | Itemized, HLE-supplied or customer-furnished |
| Access and power | Itemized |
| Budget | One-pager with line items, for a grant budget |
Delivered units of this type
Photos of mobile outreach units HLE has built are on the vehicle page.

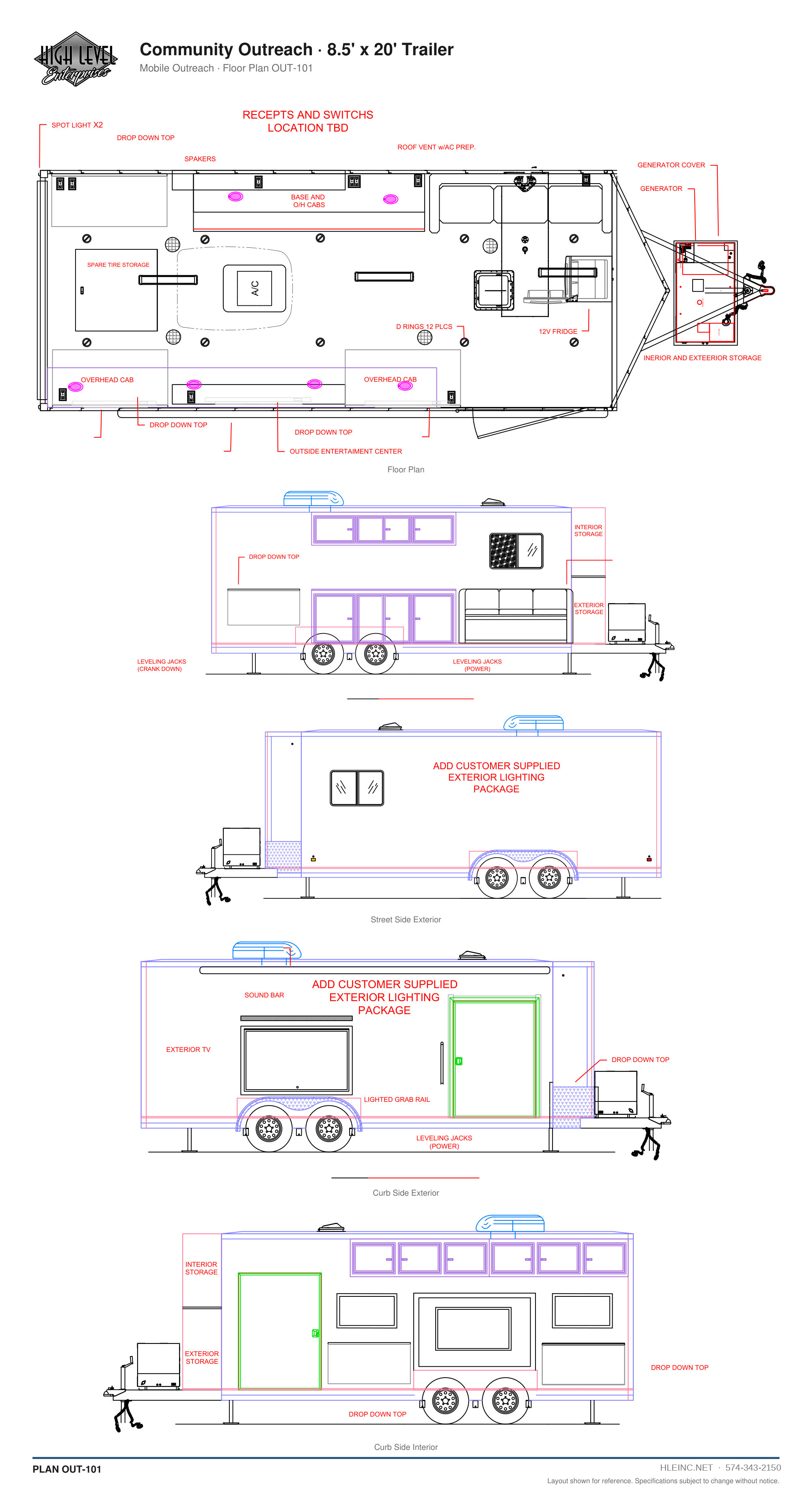

See delivered units →Views on this sheet
- Floor Plan
- Street Side Exterior
- Curb Side Exterior
- Curb Side Interior
One JPEG, every view stacked and captioned.
Nearby plans
Same vehicle type, one step either way

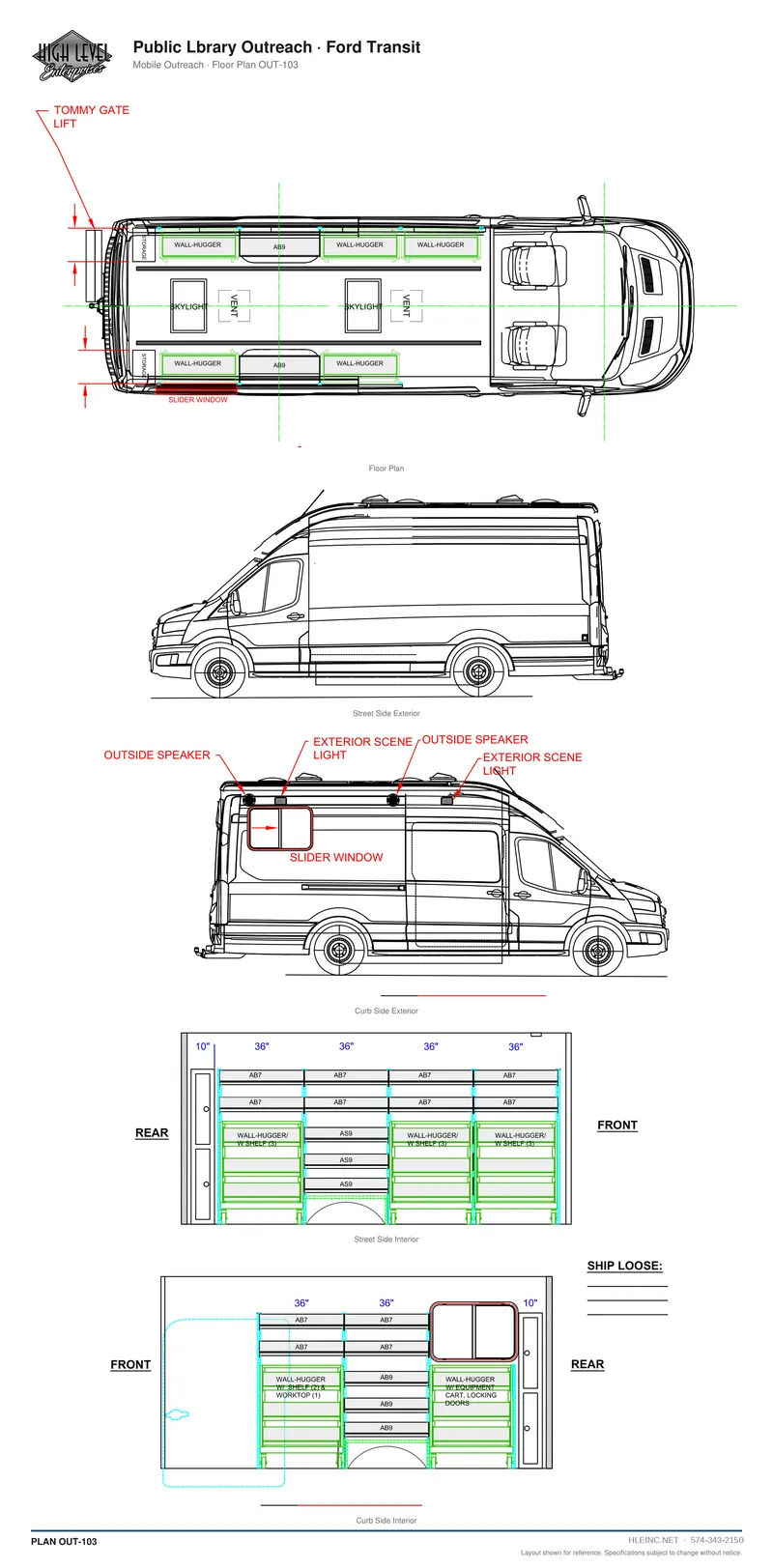

PLAN OUT-103 · JAN 2026
Open the plan sheet →
Public Library Outreach
Ford Transit
Platform
Mobile outreach
Vehicle type
≈ 21 ft
Length (approx.)
PLAN OUT-104 · MAY 2026
Open the plan sheet →
Mobile Outreach
Ford E-450
Platform
Mobile outreach
Vehicle type
≈ 25 ft
Length (approx.)

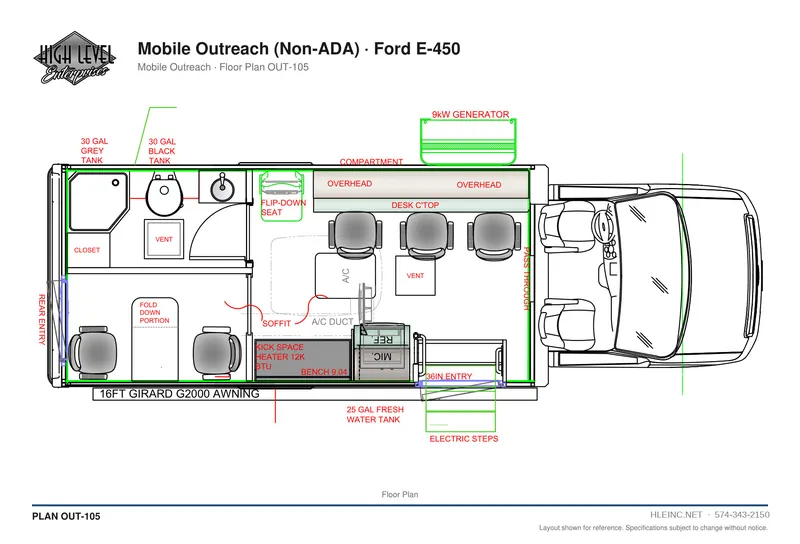

PLAN OUT-105 · MAY 2026
