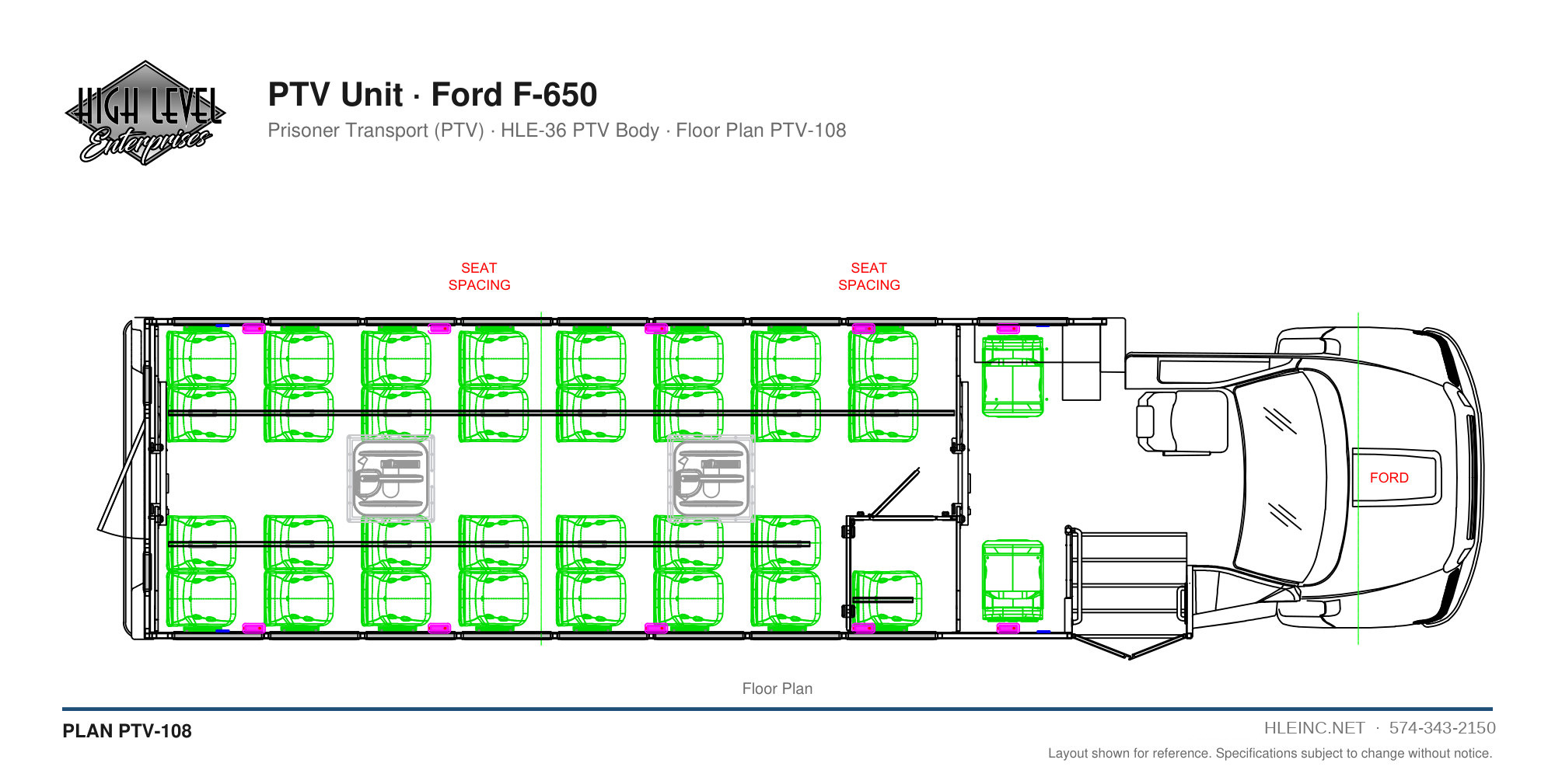

Floor plans › Prisoner transport › PTV-108
PLAN PTV-108 · DRAWN MAR 2025
PTV Unit
PLAN VIEW · DIMENSIONS REMOVED FROM THE PUBLIC SHEETHLE ENGINEERING · WAKARUSA, IN
Ford F-650
Platform · medium-duty
Prisoner transport
Vehicle type
≈ 36 ft
Length · approx., from the HLE body code on the drawing
PTV-108
Plan ID · quote it when you call
Dimensions are removed from the public drawing. Every unit is built to the customer's program; this plan is a starting point.
Budget range · typical for this vehicle type
$110,000 – $350,000
Typical range for recent HLE units, from the lowest sold to the highest quoted. Larger or more heavily equipped units run above it; your number comes with the proposal.
Vehicle, body and HLE-supplied equipment. Customer-furnished equipment itemized separately, no markup.
| Line | On the budget |
|---|---|
| Platform and length | Ford F-650 · ≈ 36 ft (approx.) |
| Major equipment | Itemized, HLE-supplied or customer-furnished |
| Access and power | Itemized |
| Budget | One-pager with line items, for a grant budget |
Delivered units of this type
Photos of prisoner transport vehicles HLE has built are on the vehicle page.
See delivered units →Views on this sheet
- Floor Plan
One JPEG, every view stacked and captioned.
Nearby plans
Same vehicle type, one step either way
PLAN PTV-106 · FEB 2025
Open the plan sheet →
25 Passenger
Ford E-450
Platform
Prisoner transport
Vehicle type
≈ 27 ft
Length (approx.)
PLAN PTV-107 · JAN 2025
Open the plan sheet →
MSCO Transport Van
Mercedes-Benz Sprinter
Platform
Prisoner transport
Vehicle type
≈ 23 ft
Length (approx.)
PLAN PTV-109 · MAR 2025
Open the plan sheet →
PTV Unit
Ford F-650
Platform
Prisoner transport
Vehicle type
≈ 39 ft
Length (approx.)

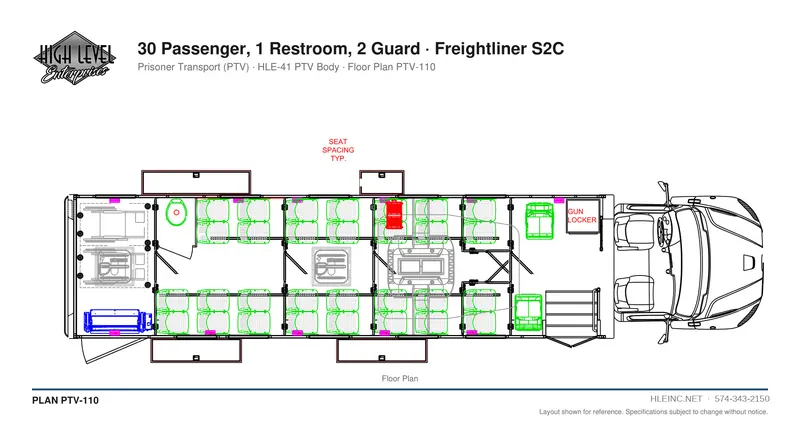

PLAN PTV-110 · MAR 2025
