PLAN PTV-118

Prisoner transport bus with restroom

PLAN VIEW · DIMENSIONS REMOVED FROM THE PUBLIC SHEETHLE ENGINEERING · WAKARUSA, IN

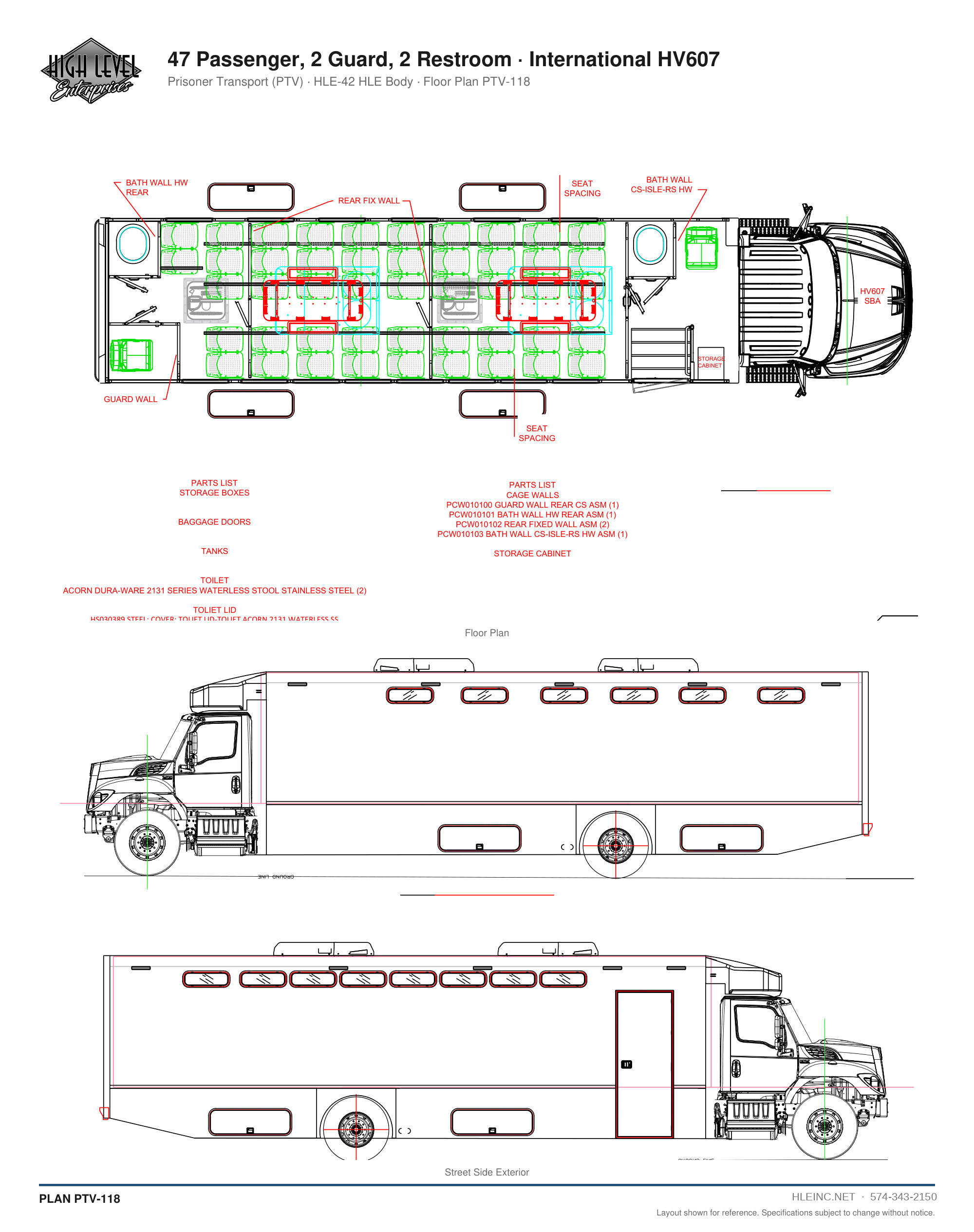

Floor plan PTV-118: Prisoner transport bus with restroom, International HV607
International HV607
Platform · medium-duty
Prisoner transport
Vehicle type
40 ft and over
Length range · ask sales for the drawing length
PTV-118
Plan ID · quote it when you call

Dimensions are removed from the public drawing. Every unit is built to the customer's program; this plan is a starting point.

Ask sales for a fully dimensioned sheet

Budget range · typical for this vehicle type

$110,000 – $350,000

Typical range for recent HLE units, from the lowest sold to the highest quoted. Larger or more heavily equipped units run above it; your number comes with the proposal.

Vehicle, body and HLE-supplied equipment. Customer-furnished equipment itemized separately, no markup.

LineOn the budget
Platform and lengthInternational HV607 · 40 ft and over
Major equipmentItemized, HLE-supplied or customer-furnished
Access and powerItemized
BudgetOne-pager with line items, for a grant budget
Get a budget price
Budget one-pager for a grant application →

Delivered units of this type

Photos of prisoner transport vehicles HLE has built are on the vehicle page.

See delivered units →

Views on this sheet

  • Floor Plan
  • Street Side Exterior

One JPEG, every view stacked and captioned.
