Floor plans › Prisoner transport › PTV-130

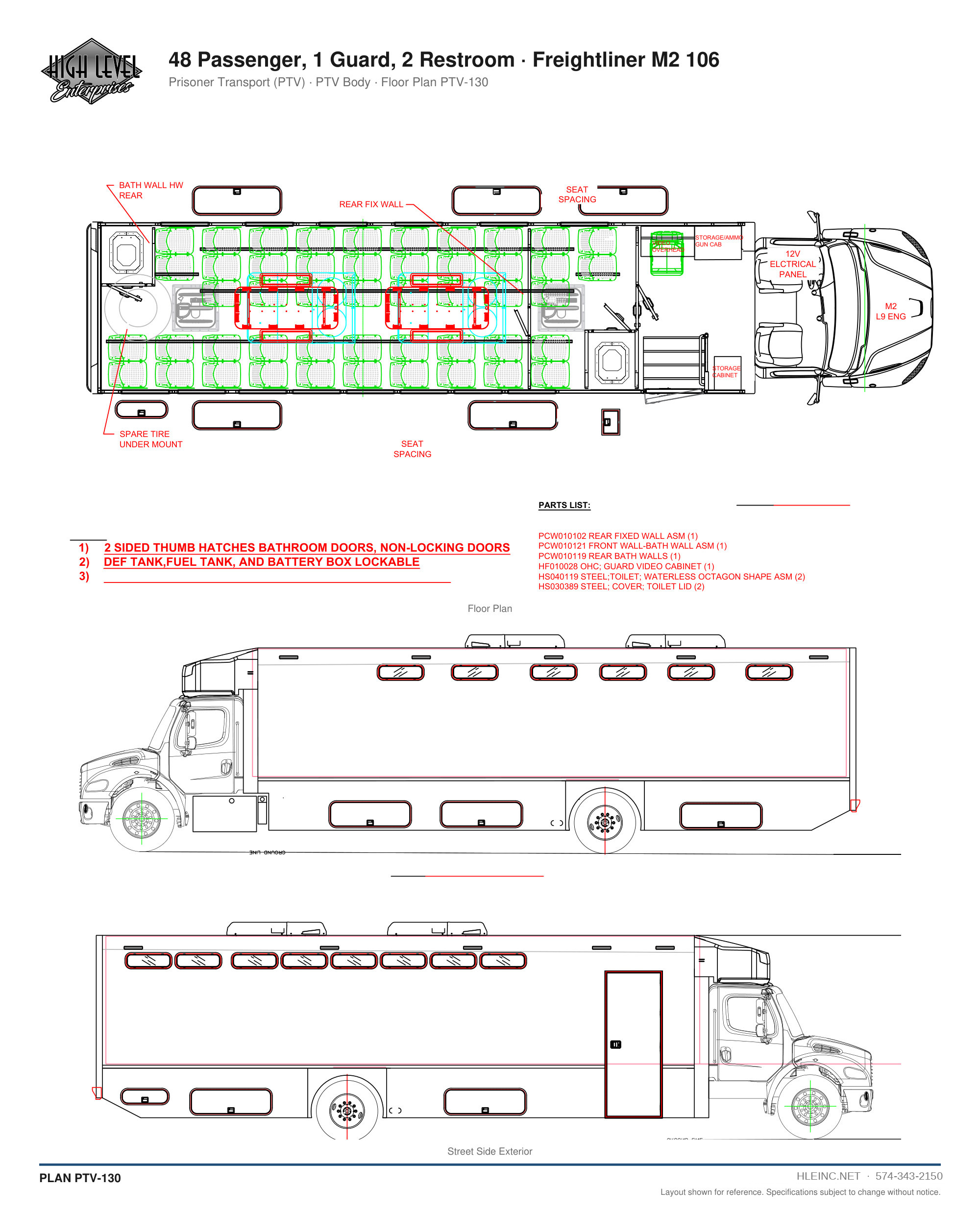

PLAN PTV-130
48 Passenger, 1 Guard, 2 Restroom
PLAN VIEW · DIMENSIONS REMOVED FROM THE PUBLIC SHEETHLE ENGINEERING · WAKARUSA, IN
Freightliner M2 106
Platform · medium-duty
Prisoner transport
Vehicle type
≈ 42 ft
Length · approx., typical for this chassis
PTV-130
Plan ID · quote it when you call
Dimensions are removed from the public drawing. Every unit is built to the customer's program; this plan is a starting point.
Budget range · typical for this vehicle type
$110,000 – $350,000
Typical range for recent HLE units, from the lowest sold to the highest quoted. Larger or more heavily equipped units run above it; your number comes with the proposal.
Vehicle, body and HLE-supplied equipment. Customer-furnished equipment itemized separately, no markup.
| Line | On the budget |
|---|---|
| Platform and length | Freightliner M2 106 · ≈ 42 ft (approx.) |
| Major equipment | Itemized, HLE-supplied or customer-furnished |
| Access and power | Itemized |
| Budget | One-pager with line items, for a grant budget |
Delivered units of this type
Photos of prisoner transport vehicles HLE has built are on the vehicle page.
See delivered units →Views on this sheet
- Floor Plan
- Street Side Exterior
One JPEG, every view stacked and captioned.
Nearby plans
Same vehicle type, one step either way
PLAN PTV-128 · MAR 2026
Open the plan sheet →
48 Passenger, 1 Guard, 2 Restroom
International MV607
Platform
Prisoner transport
Vehicle type
≈ 42 ft
Length (approx.)
PLAN PTV-129 · FEB 2026
Open the plan sheet →
48 Passenger, 1 Guard, 2 Restroom
Freightliner M2 106
Platform
Prisoner transport
Vehicle type
≈ 42 ft
Length (approx.)

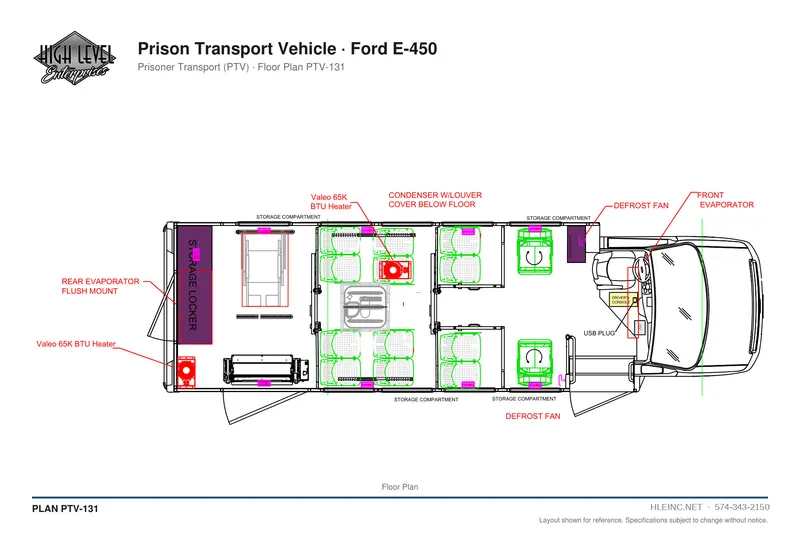

PLAN PTV-131 · MAR 2026
