Floor plans › Bookmobiles › BKM-104

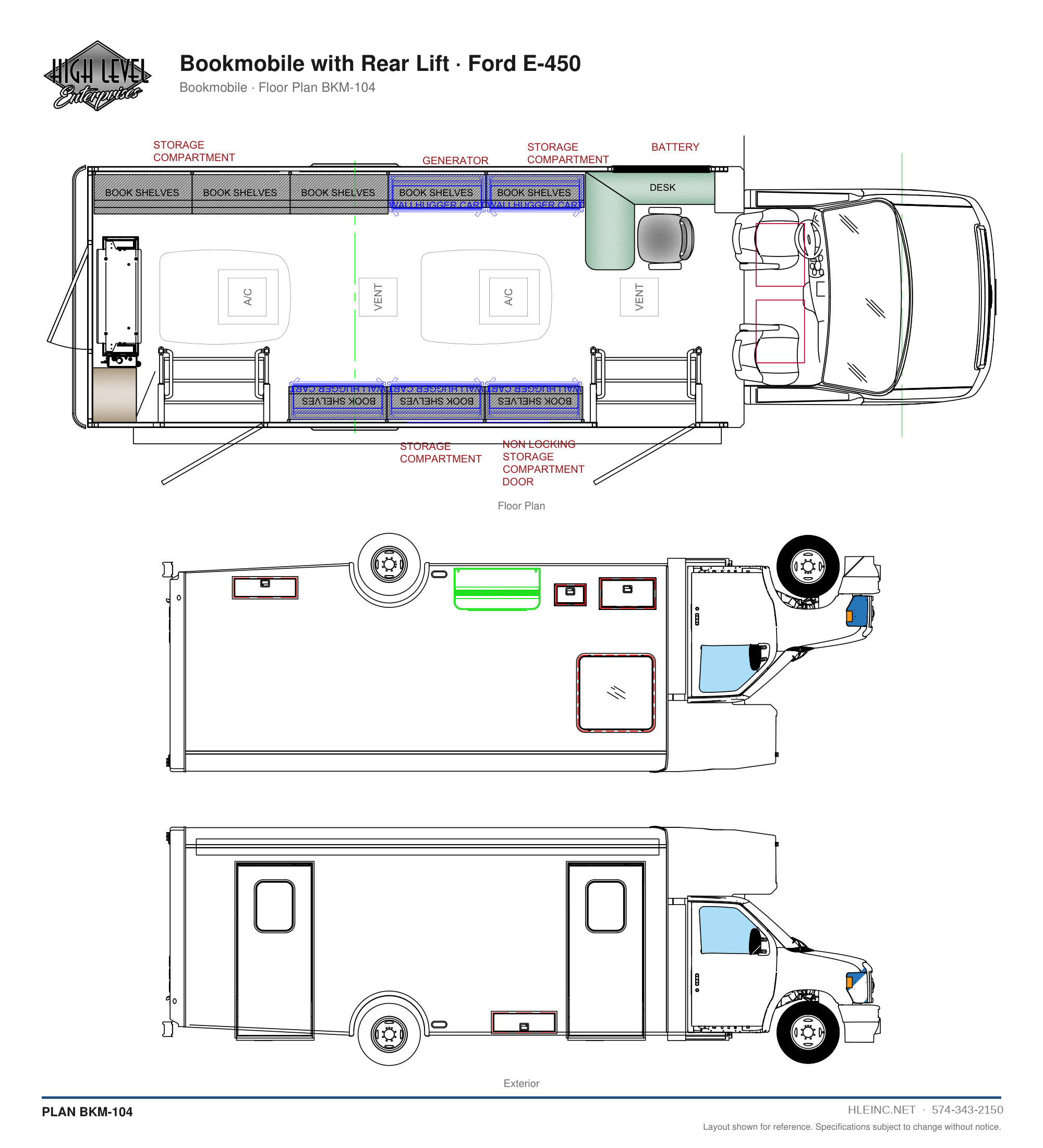

PLAN BKM-104
Bookmobile with Rear Lift
PLAN VIEW · DIMENSIONS REMOVED FROM THE PUBLIC SHEETHLE ENGINEERING · WAKARUSA, IN
Ford E-450
Platform · cutaway
Bookmobile
Vehicle type
≈ 25 ft
Length · approx., typical for this chassis
BKM-104
Plan ID · quote it when you call
Dimensions are removed from the public drawing. Every unit is built to the customer's program; this plan is a starting point.
Budget range · typical for this vehicle type
$240,000 – $515,000
Typical range for recent HLE units, from the lowest sold to the highest quoted. Larger or more heavily equipped units run above it; your number comes with the proposal.
Vehicle, body and HLE-supplied equipment. Customer-furnished equipment itemized separately, no markup.
| Line | On the budget |
|---|---|
| Platform and length | Ford E-450 · ≈ 25 ft (approx.) |
| Major equipment | Itemized, HLE-supplied or customer-furnished |
| Access and power | Itemized |
| Budget | One-pager with line items, for a grant budget |
Delivered units of this type
Photos of bookmobiles HLE has built are on the vehicle page.
See delivered units →Views on this sheet
- Floor Plan
- Exterior
One JPEG, every view stacked and captioned.
