Floor plans › Bookmobiles › BKM-113
PLAN BKM-113 · DRAWN MAY 2026
Mobile Outreach/Bookmobile
PLAN VIEW · DIMENSIONS REMOVED FROM THE PUBLIC SHEETHLE ENGINEERING · WAKARUSA, IN
Ford Transit
Platform · van
Bookmobile
Vehicle type
≈ 21 ft
Length · approx., typical for this chassis
BKM-113
Plan ID · quote it when you call
Dimensions are removed from the public drawing. Every unit is built to the customer's program; this plan is a starting point.
Budget range · typical for this vehicle type
$240,000 – $515,000
Typical range for recent HLE units, from the lowest sold to the highest quoted. Larger or more heavily equipped units run above it; your number comes with the proposal.
Vehicle, body and HLE-supplied equipment. Customer-furnished equipment itemized separately, no markup.
| Line | On the budget |
|---|---|
| Platform and length | Ford Transit · ≈ 21 ft (approx.) |
| Major equipment | Itemized, HLE-supplied or customer-furnished |
| Access and power | Itemized |
| Budget | One-pager with line items, for a grant budget |
Delivered units of this type
Photos of bookmobiles HLE has built are on the vehicle page.

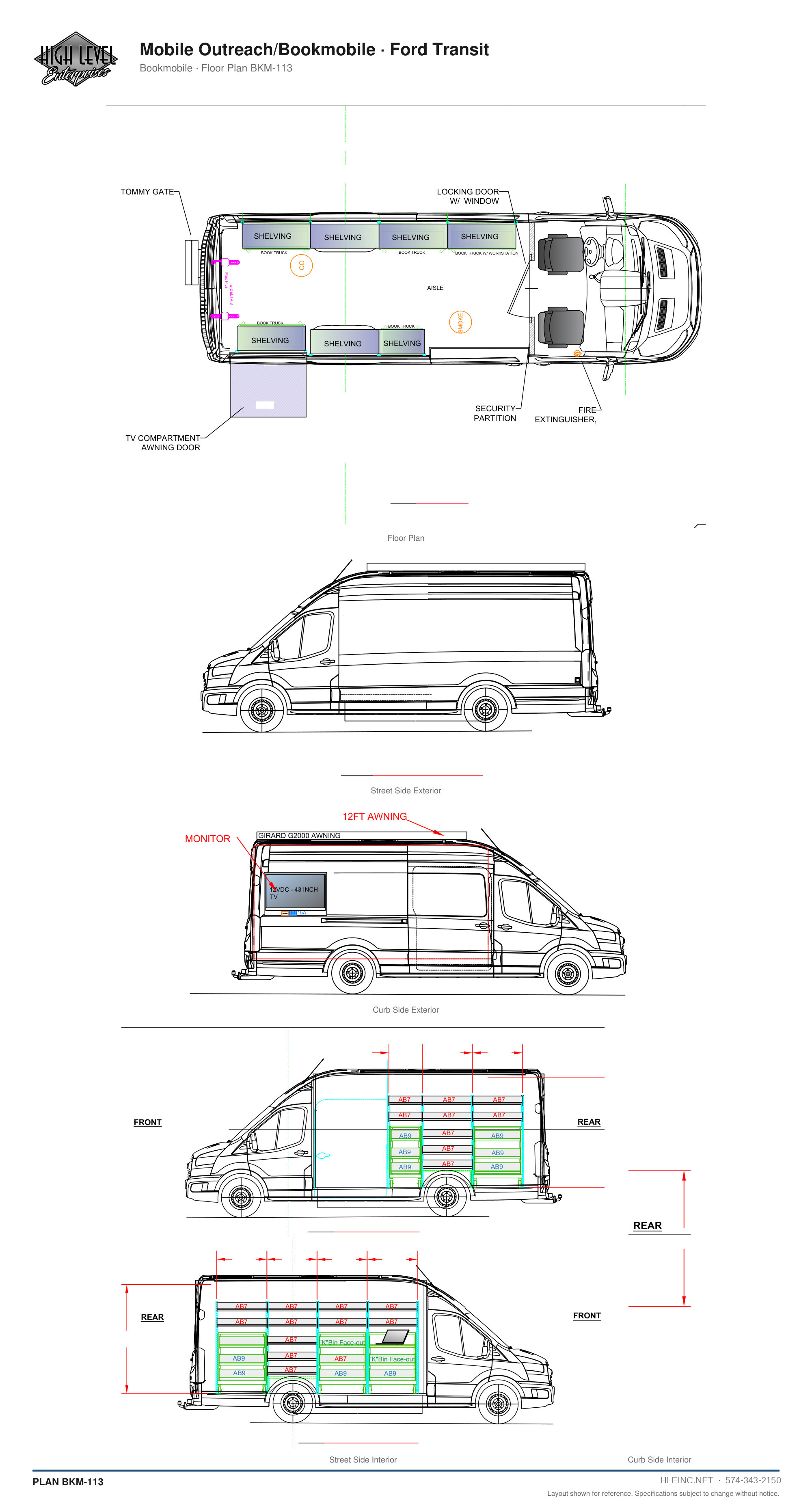

See delivered units →Views on this sheet
- Floor Plan
- Street Side Exterior
- Curb Side Exterior
- Street Side Interior
- Curb Side Interior
One JPEG, every view stacked and captioned.
