Floor plans › Sprinter upfits › CUS-113

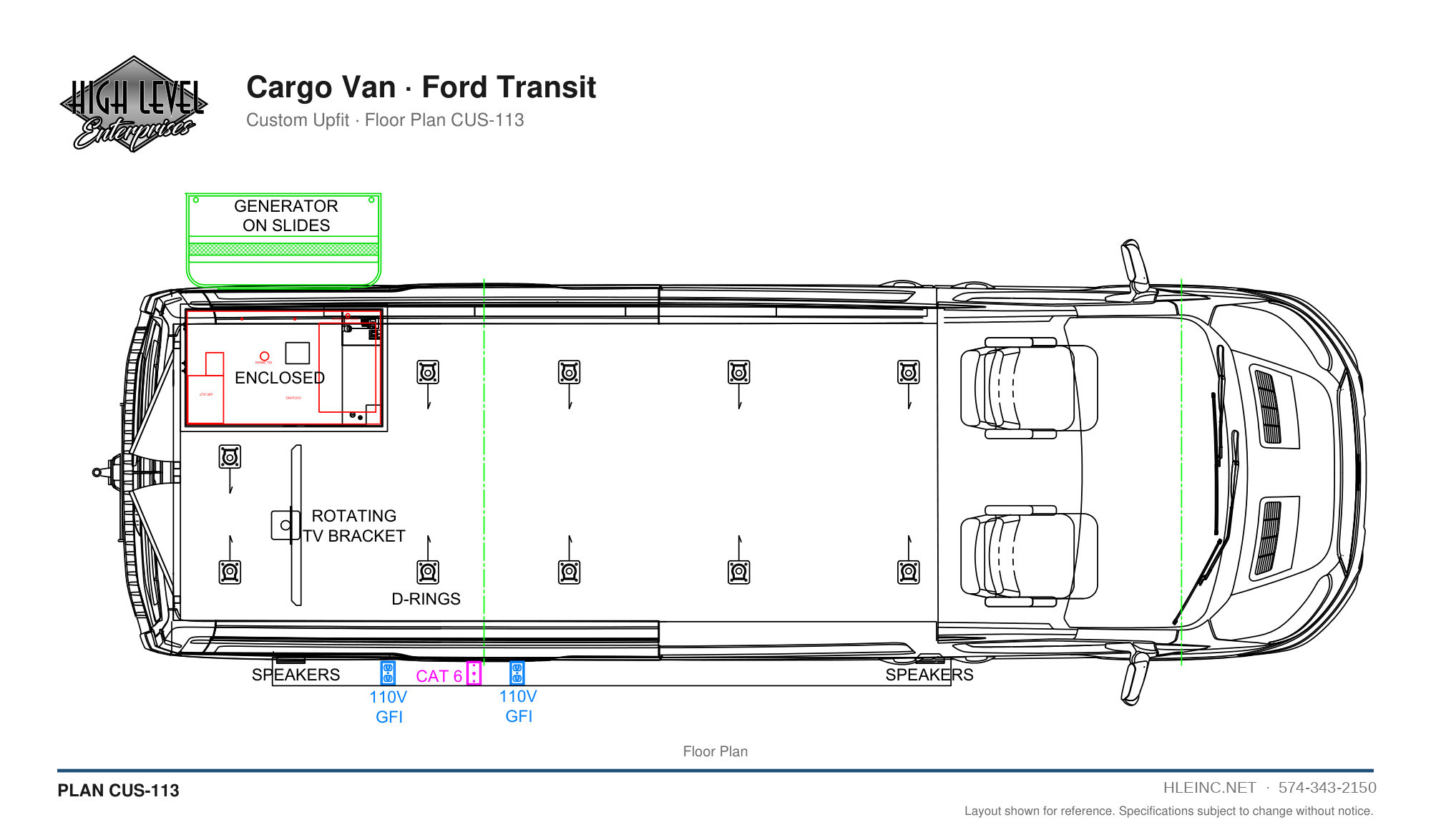

PLAN CUS-113 · DRAWN JAN 2026
Cargo Van
PLAN VIEW · DIMENSIONS REMOVED FROM THE PUBLIC SHEETHLE ENGINEERING · WAKARUSA, IN
Ford Transit
Platform · van
Custom upfit
Vehicle type
≈ 21 ft
Length · approx., typical for this chassis
CUS-113
Plan ID · quote it when you call
Dimensions are removed from the public drawing. Every unit is built to the customer's program; this plan is a starting point.
Budget range · typical for this vehicle type
Priced per unit
Your number comes with the proposal.
Vehicle, body and HLE-supplied equipment. Customer-furnished equipment itemized separately, no markup.
| Line | On the budget |
|---|---|
| Platform and length | Ford Transit · ≈ 21 ft (approx.) |
| Major equipment | Itemized, HLE-supplied or customer-furnished |
| Access and power | Itemized |
| Budget | One-pager with line items, for a grant budget |
Delivered units of this type
Photos of sprinter and custom van upfits HLE has built are on the vehicle page.
See delivered units →Views on this sheet
- Floor Plan
One JPEG, every view stacked and captioned.
