Floor plans › Trailers › TRL-109
PLAN TRL-109 · DRAWN SEP 2025
Sport Trailer
PLAN VIEW · DIMENSIONS REMOVED FROM THE PUBLIC SHEETHLE ENGINEERING · WAKARUSA, IN
—
Chassis not specified on the drawing
Trailer
Vehicle type
—
Length · ask sales
TRL-109
Plan ID · quote it when you call
Dimensions are removed from the public drawing. Every unit is built to the customer's program; this plan is a starting point.
Budget range · typical for this vehicle type
Priced by what goes inside: use the range for your industry
Vehicle, body and HLE-supplied equipment. Customer-furnished equipment itemized separately, no markup.
| Line | On the budget |
|---|---|
| Platform and length | Chassis to be confirmed |
| Major equipment | Itemized, HLE-supplied or customer-furnished |
| Access and power | Itemized |
| Budget | One-pager with line items, for a grant budget |
Delivered units of this type
Photos of gooseneck and specialty trailers HLE has built are on the vehicle page.
See delivered units →Views on this sheet

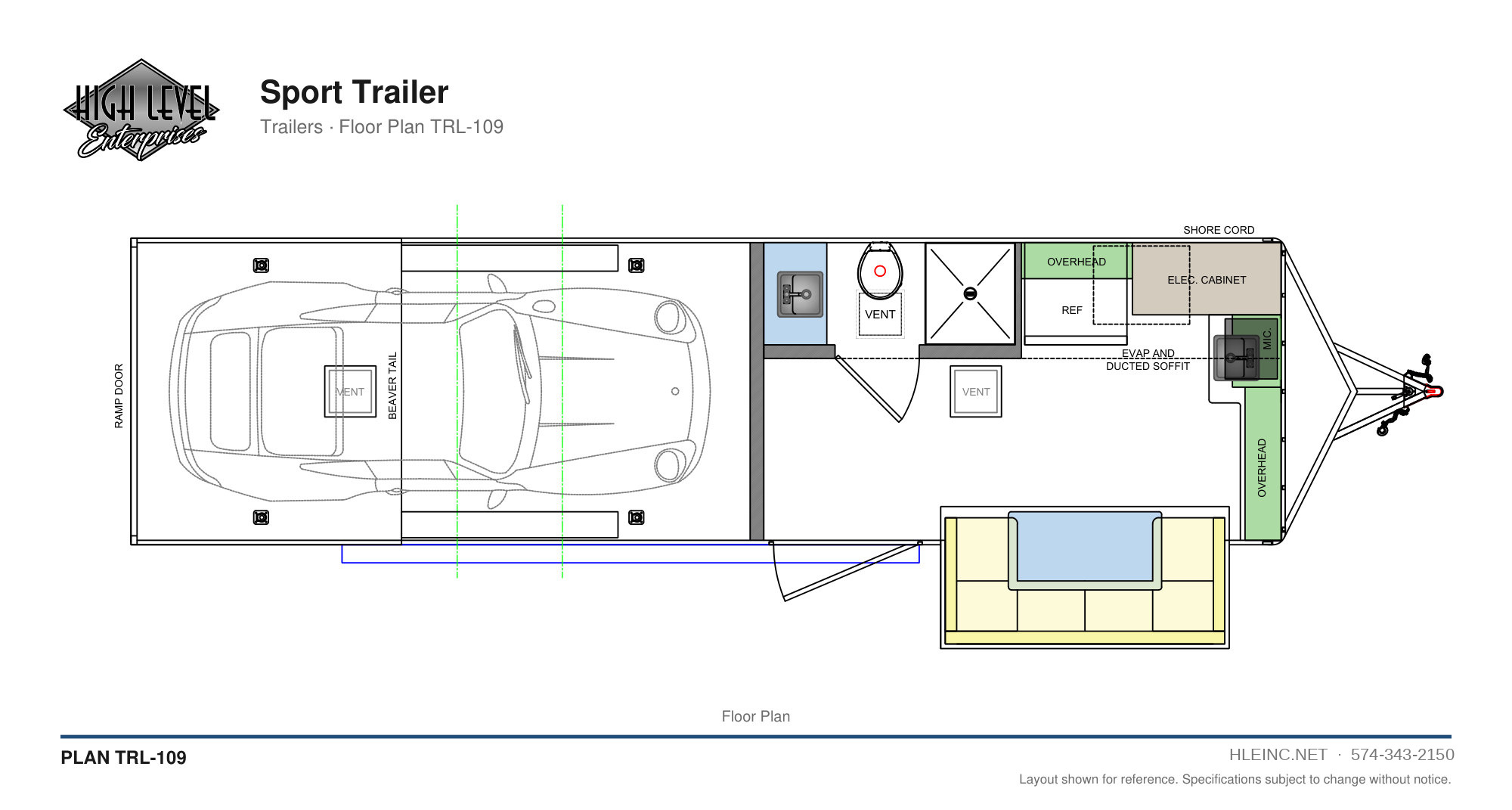

- Floor Plan
One JPEG, every view stacked and captioned.
